Perforated cable trays, also known as ventilated cable trays, are an efficient and cost-effective cable management system solution. They are known for their openings of different sizes on the surface. These holes can greatly improve the heat dissipation of the tray, accelerate the discharge of heat generated by the cable work in the tray, and avoid heat accumulation that affects the normal operation of the cable. Perforated cable trays are widely used in various commercial buildings, industrial facilities, data centers and other places to ensure the normal operation and stable operation of cables.
As one of the largest cable tray manufacturers in China, JLH Electric has 15 years of rich manufacturing experience and specializes in manufacturing various cable trays, such as perforated cable trays, cable trunkings, ladder type cable trays, etc. And we have a “zinc pool” authorized and approved by the government, so the stability and controllability of the cable tray quality are guaranteed. We also support customized services, such as the size of the tray and the thickness of the zinc layer. If you have any product questions, please contact us and we will answer your questions as soon as possible.
In this article, we will discuss perforated cable trays from the following main aspects:
- l What is perforated cable tray?
- l What are the features of perforated cable tray?
- l What Are The Disadvantages Of perforated cable tray?
- l Where the perforated cable tray used for?
- l What should consider when we choose right perforated cable trays？
- l Conclusion
1.What is perforated cable tray?

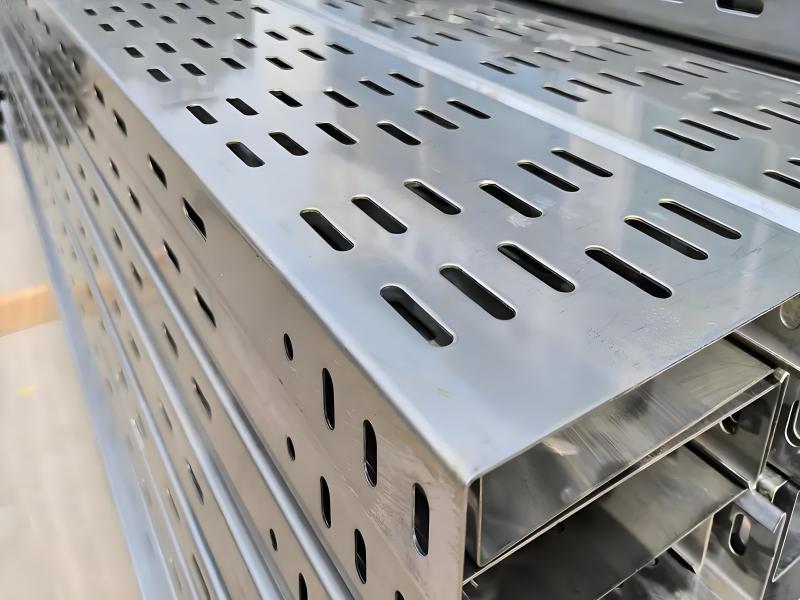

Perforated cable tray is a system solution for cable management. With its exquisite design and solid structure, it plays a key role in the layout, support and management of cables. The biggest feature of perforated cable tray is that its surface has various holes of different shapes and sizes. These hole designs speed up the air flow inside the tray, which is conducive to the rapid discharge of heat from the inside of the tray, speeding up the heat dissipation and preventing the accumulation of heat inside the tray from affecting the normal operation of the cable. The raw materials of perforated cable tray are usually made of metals such as steel, aluminum, and stainless steel, so the structure is very strong. The surface treatment usually adopts galvanizing, plastic spraying and other treatments to make it have good rust and corrosion resistance, which greatly enhances the environmental adaptability of perforated cable tray.
2.What are the features of perforated cable tray?
2.1Easy to clean and maintain
Because there are many openings on the surface of the perforated cable tray, air can flow freely, which helps the cable dissipate heat and also makes it easy for cleaning personnel to directly contact the cables and flush them directly through the holes, which greatly facilitates the cleaning of the tray and facilitates daily cleaning and maintenance.
2.2Good heat dissipation performance
The open design of the perforated cable tray allows air to flow freely, which helps the heat generated by the cables to dissipate quickly into the environment, thereby reducing the operating temperature of the cables and improving the safety and reliability of the system. This design reduces the accumulation of heat between cables, which is especially important for high-power or high-density wiring cable systems, which may generate a lot of heat.
2.3 Robust structural design
The raw materials of the perforated cable tray are usually made of metal materials such as steel, aluminum alloy, stainless steel, etc., so they have a sturdy structure and strength. These metal materials can withstand the weight of the cables and the external forces that may be encountered, such as manual handling or vehicle handling. At the same time, the reasonable structural design of the perforated cable tray not only helps to dissipate heat, but also enhances the overall stability and durability.
2.4 Excellent rust and corrosion resistance
The surface of the perforated cable tray is usually galvanized. After galvanizing, a layer of zinc will be formed on the surface of the cable tray. This zinc layer will protect the cable tray from external corrosion factors such as moisture, rain, chemicals, etc., enhance the stability of the perforated cable tray and extend its service life.
3.What Are The Disadvantages Of perforated cable tray?
3.1 Insufficient protection
Due to the open design of perforated cable tray, the holes on the surface are easy to accumulate dust and debris, and are invaded by small animals from the outside, which may cause the potential risk of gnawing and damage.
3.2 Cleaning Issues
Although perforated cable trays are easy to maintain and clean, the open design is easy to accumulate dust and debris, which also means that more frequent cleaning and inspection are required to prevent dust and debris from accumulating, which will increase the workload and cost of maintenance in the long run.
3.3 High initial cost
The design of perforated cable trays may be more complicated than other types of cable trays. It is necessary to consider multiple factors such as heat dissipation, support and maintenance of cables, and the design cost is high. At the same time, perforated cable trays also need to undergo multiple processing such as perforation and grooving, so their initial manufacturing cost is high.
3.4 Noise Issues
Due to the open design of perforated cable trays, there are a large number of holes on the surface, which are easy to promote the propagation of sound. Therefore, in some cases, the vibration of the cable on the perforated cable tray will generate noise and propagate through the holes, especially when the cable length is long or the tray span is large.
3.5 Insufficient Aesthetics
Compared with the closed cable tray, the cables of the perforated cable tray are directly exposed to the outside, so the aesthetics are insufficient, especially in places with high aesthetic requirements, such as shopping malls, art galleries, office buildings, etc.
4.Where the perforated cable tray used for?
4.1 Industrial field
In the petroleum, chemical and light industries, perforated cable trays are widely used for laying power cables and managing cables due to their good heat dissipation performance and load-bearing capacity.
4.2 Commercial and residential buildings
The perforated cable tray has a delicate structure and an open design that helps to dissipate the heat of the cables, while also providing cable management and support. It is often used as the preferred cable management solution in commercial buildings such as shopping malls, hotels, office buildings and residential buildings.
4.3 Data Center
Data centers have dense equipment and many cables. The open structure of the perforated cable tray allows the heat inside the tray to be quickly discharged, reducing the impact of heat accumulation inside the tray on the normal operation of the cable.
4.4 Telecommunications industry
In the telecommunications industry, perforated cable trays are often used to support and protect communication cables to ensure the stability of signal transmission.
4.5 Public facilities
Perforated cable trays are often used for cable layout and management due to their easy installation and maintenance. They are widely used in public facilities such as schools, hospitals, and government buildings.
5.What should we consider when we choose right perforated cable trays?
5.1 Size and carrying capacity
First, we need to evaluate the number of cables and their sizes to ensure that the selected perforated cable tray can fully accommodate and effectively manage these cables. This is the most important point in choosing a suitable cable tray.
5.2 Installation environment
Temperature factors: Perforated cable trays should be in the temperature range of -25°C to 60°C, which can ensure performance and durability in extreme temperatures.
Humidity control: The ideal humidity in the use environment should be less than 95%, which can reduce the corrosion of the tray caused by excessive humidity and extend the service life of the tray.
Anti-corrosion requirements: If the tray is in a chemical or humid environment, materials or coatings with good anti-corrosion properties should be selected, such as hot-dip galvanizing or special anti-corrosion coatings.
Dust and debris prevention: If the perforated cable tray is in a dusty environment, consider using a tray with a cover to reduce the accumulation of dust and debris, and regular cleaning and maintenance are required.
6.Conclusion
Perforated cable trays are an efficient, flexible and cost-effective cable management solution suitable for a variety of environments and locations.However, they also have some potential disadvantages, such as insufficient protection and cleaning issues. In order to maximize the advantages of perforated cable trays and reduce their disadvantages, users should carefully consider the above factors when selecting and installing them. With proper design, material selection and maintenance strategies, perforated cable trays can provide long-term value and performance for cable management systems.
Through the above introduction, we have provided a comprehensive perspective on the selection of perforated cable trays to help us make wise decisions and maximize the advantages of perforated cable trays.
JLH Electric is a factory with 15 years of experience in cable tray production and manufacturing. It has been supplying various types of cable trays and also supports customized services with very high quality and competitive prices. If you have any product questions, please feel free to contact us. We will provide you with professional answers and purchase suggestions.
